ESAB Renegade VOLT™ ES 200i Battery Powered Welding Machine
- Regular
- $4,786.00
- Sale
- $4,786.00
- Regular
- $5,584.00
Sold Out
- Unit Price
- per

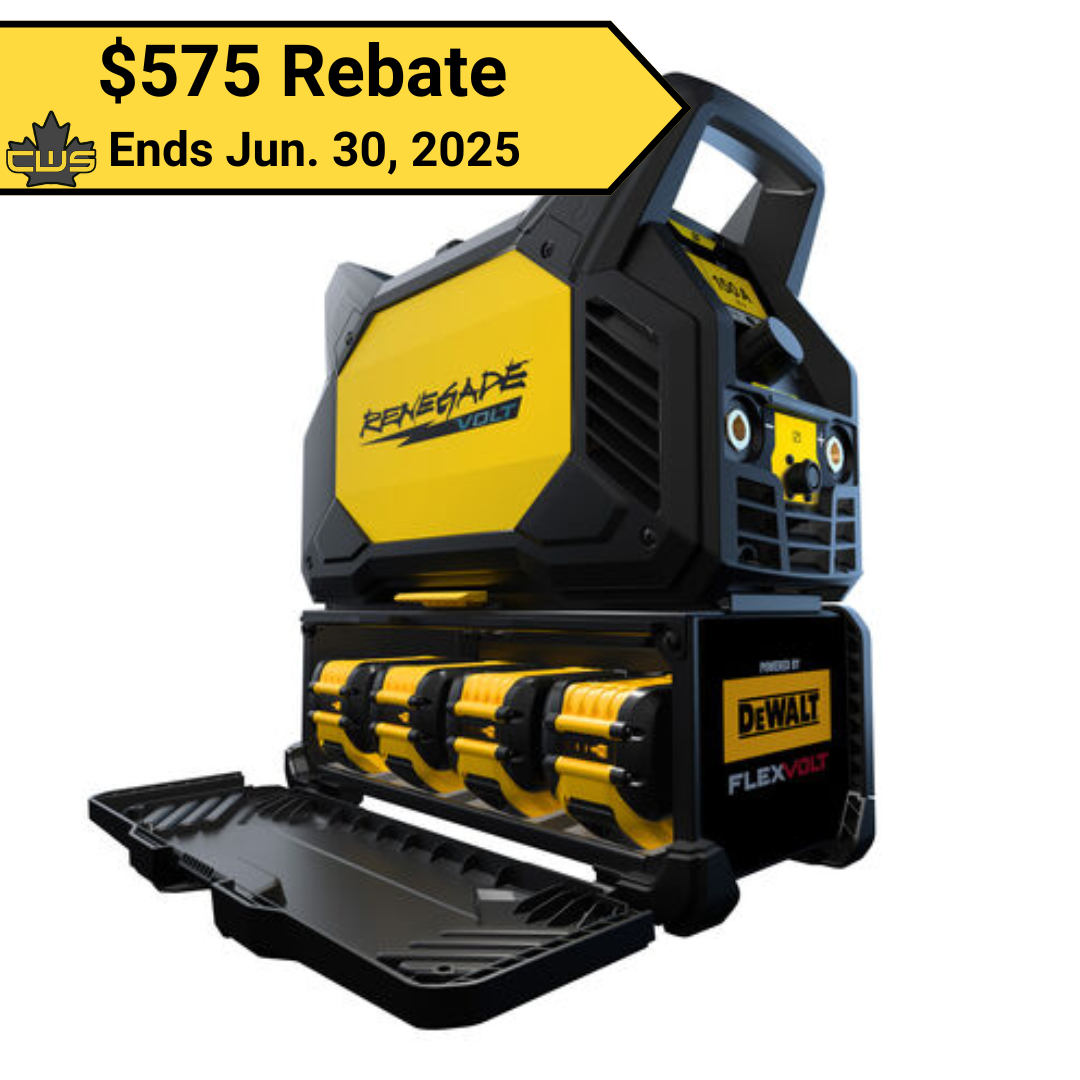

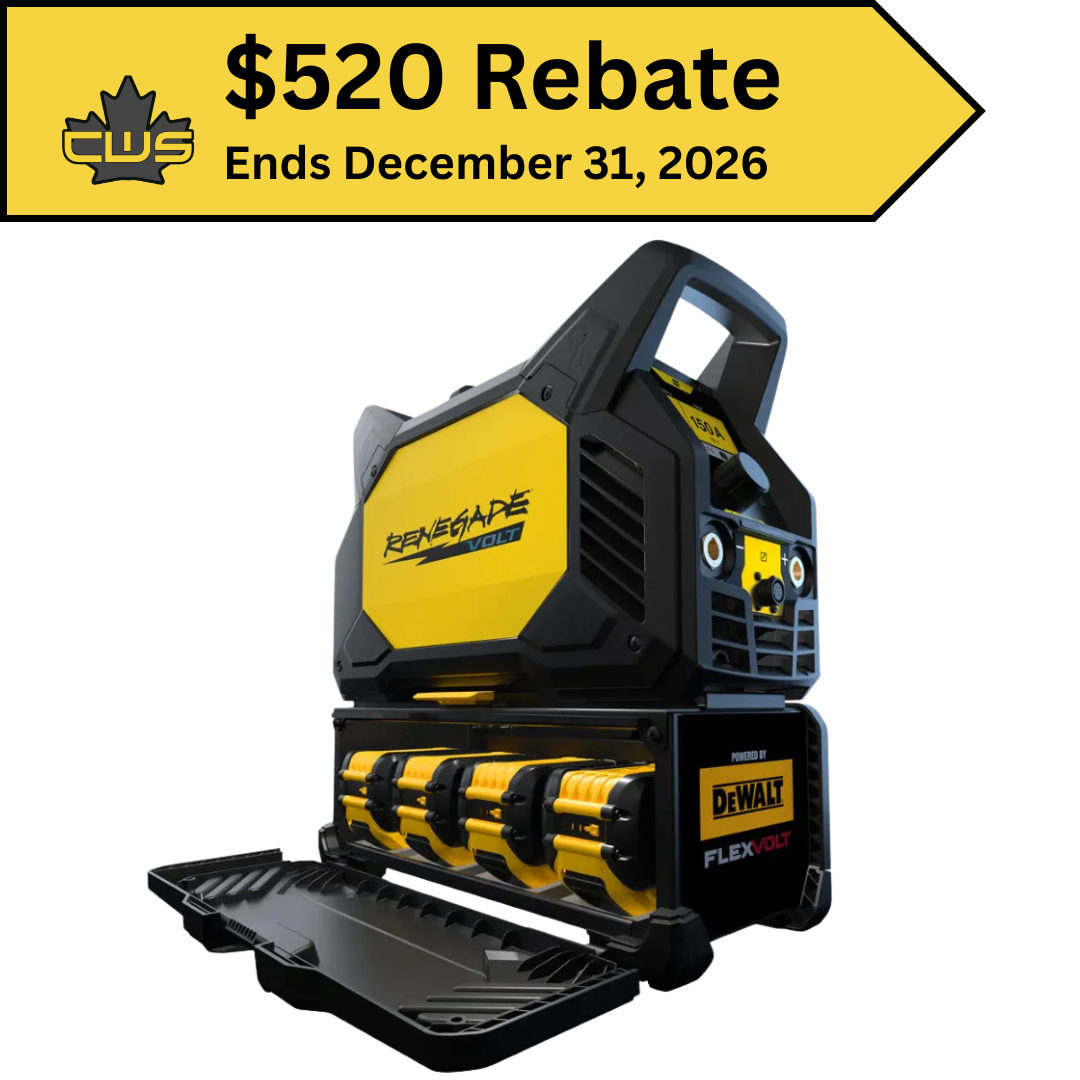

ESAB Renegade VOLT™ ES 200i
YES, IT'S NOW IN STOCK!
SHOCKINGLY PORTABLE GRAB-AND-GO WELDING.
ESAB Renegade VOLT™ ES 200i 0447800880 is a portable, cordless battery powered, Stick (SMAW) and Live TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode.
This cordless welder runs on 6 Ah, 9 Ah, and 12 Ah DEWALT® FLEXVOLT® batteries. Renegade VOLT provides the power to burn up to 33 (E6013) electrodes on a single charge using four 12 Ah batteries, that are included in the package.*
Renegade VOLT is a highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power.
In AMP+ Hybrid Mode, Renegade VOLT supplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g., 10A, 16A) or to provide more output when welding on 120V input.
Renegade VOLT features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive color-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator.
This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (6010) to optimize performance based on application or user preference.
Top Features
- 200 A output on AC mains (230V)
- Up to 140 A output on battery power
- Includes (4) DEWALT FLEXVOLT 20V/60V max 12 Ah batteries
- AMP+ hybrid mode for extra power
- Lightweight and portable battery powered welder
- Durable, impact-resistant housing
- Sun-friendly, intuitive user interface
- Memory storage for welding parameters
Additional Product Specifications
| Product Name // Part Number | ESAB Renegade VOLT™ ES 200i // 0447800880 |
| Input Voltage | 120/230V AC, 50/60 Hz. |
| Input Current | 16A Max |
| Output Power | 140A SMAW, 150A TIG (Battery) Up to 200A Max. on 230V Mains |
| Dimensions | 460 x 200 x 320 mm (18 x 8 x 13 in.) (No Battery Box) 480 x 220 x 485 mm (19 x 9 x 19 in.) (With Battery Box) |
| Weight | 41 lb. (No Batteries) 54 lb. (With Batteries) |
| Warranty |
3 Year, ESAB Authorized Repair Centres |
| Electrode Consumption |
Please see Full Product Spec Sheet |
| UPC Code | 7330725085109 |
What's in the Box?
- Power source
- (4) DEWALT FLEXVOLT 20V/60V max 12Ah batteries
- DEWALT FLEXVOLT four-port fast charger
- Electrode holder 3m (10 ft) cable and Dinse 35 Connector
- Ground cable 3m (10 ft) with clamp and Dinse 35 Connector
- Shoulder strap
- Detachable battery box
- Power adapter 115V/230V
